Epoko Case Study_2K Mold

2k injection molding

Part size: D51X23.4mm

Part material: PP6 GF30 & TPE

Cavity Number: 2+2

Runner System: 1st comp.: 1 drop hot nozzles into cold runner and sub gates to part; 2nd comp: 2 drop hot nozzles on part.

Steel: cavity;1.2343 HRC50-52

Design time: 2 weeks

Manufacture time: 6 weeks

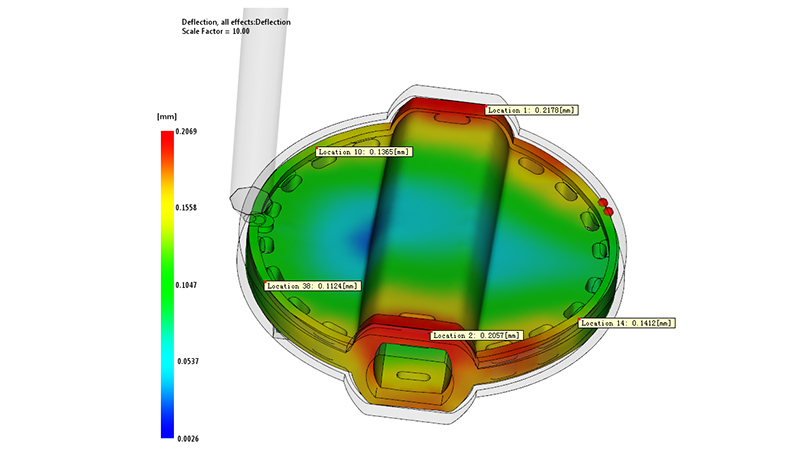

Mold flow

2k injection molding - 1
2k injection molding - 2
2k injection molding - 3
2k injection molding - 4
2k injection molding - 5
Mold Design

Runners

2k injection molding - 6
Mold Design

Core side


2k injection molding - 7
Mold Design

Cavity Cooling

2k injection molding - 8
Mold Design

Core Cooling

2k injection molding - 9
Mold Design

Cavity Side


2k injection molding - 10
Mold Design

Core Side

2k injection molding - 11

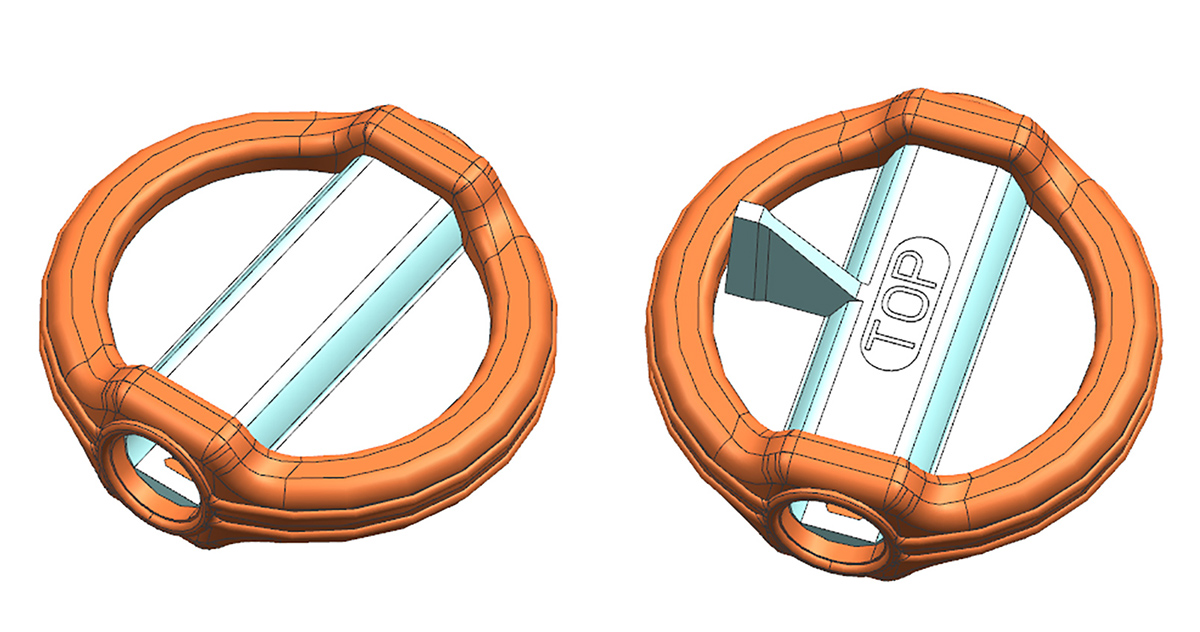

Part Picture


2k injection molding - 12

Mold Picture


2k injection molding - 13
Mold Picture
