2K Mold

HOME > CASE STUDY > 2K Mold

Part size: D51X23.4mm

Part material: PP6 GF30 & TPE

Cavity Number: 2+2

Runner System: 1st comp.: 1 drop hot nozzles into cold runner and sub gates to part; 2nd comp: 2 drop hot nozzles on part.

Steel: cavity;1.2343 HRC50-52

Design time: 2 weeks

Manufacture time: 6 weeks

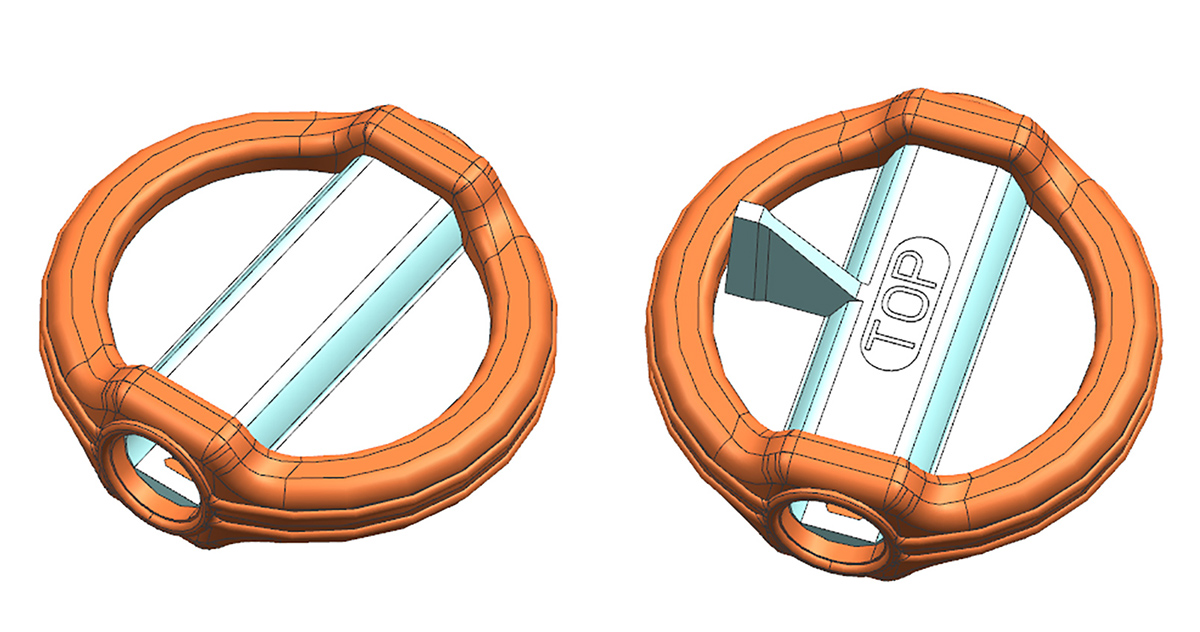

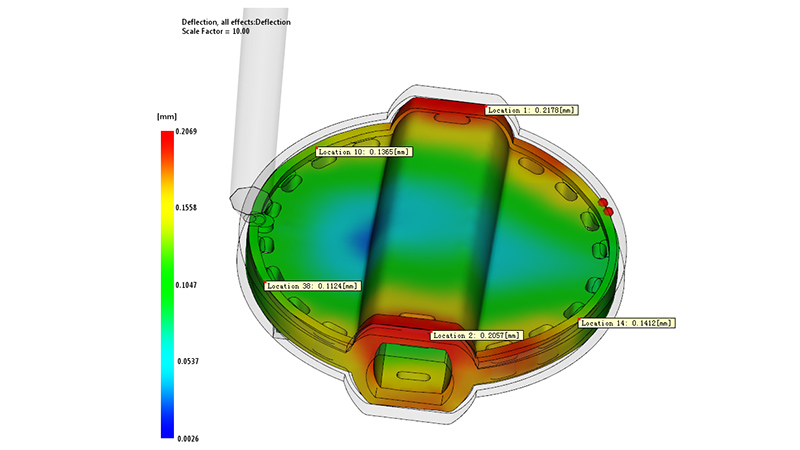

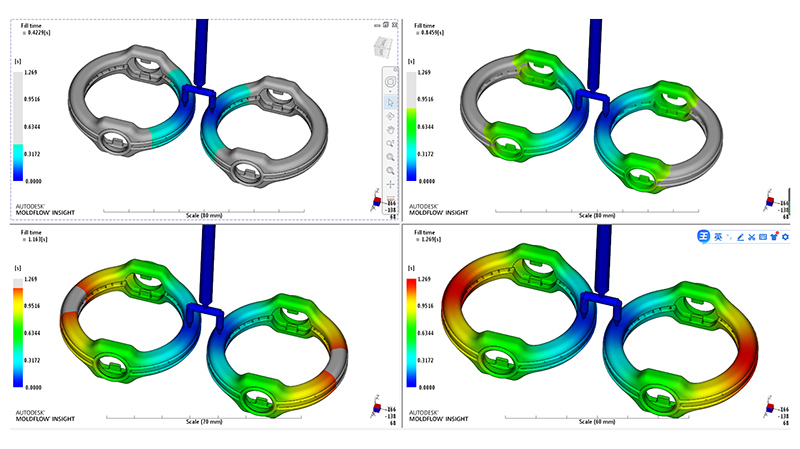

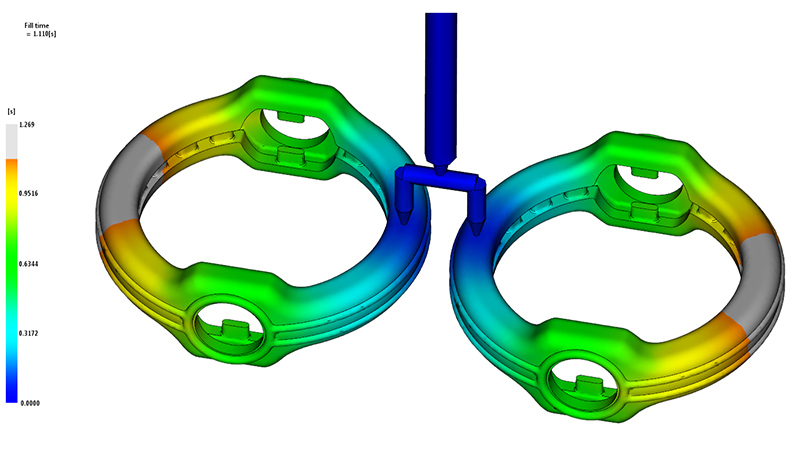

Mold flow

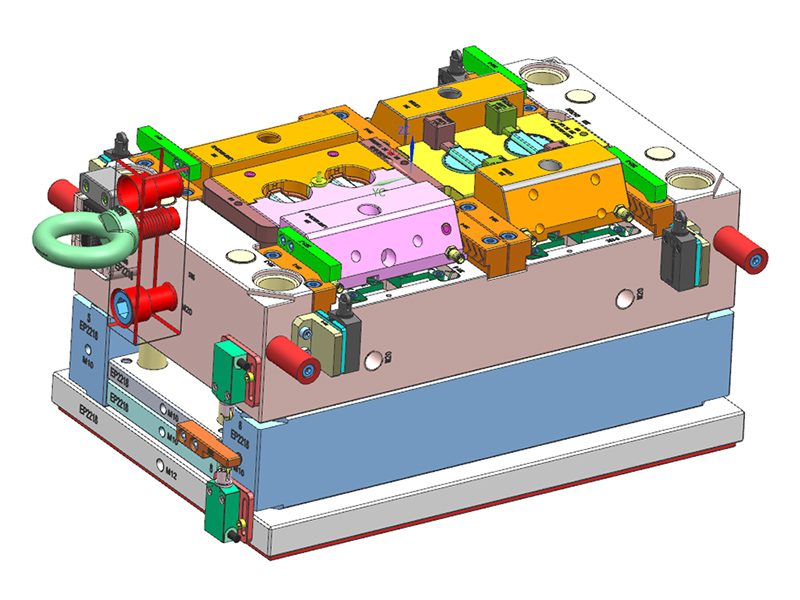

Mold Design

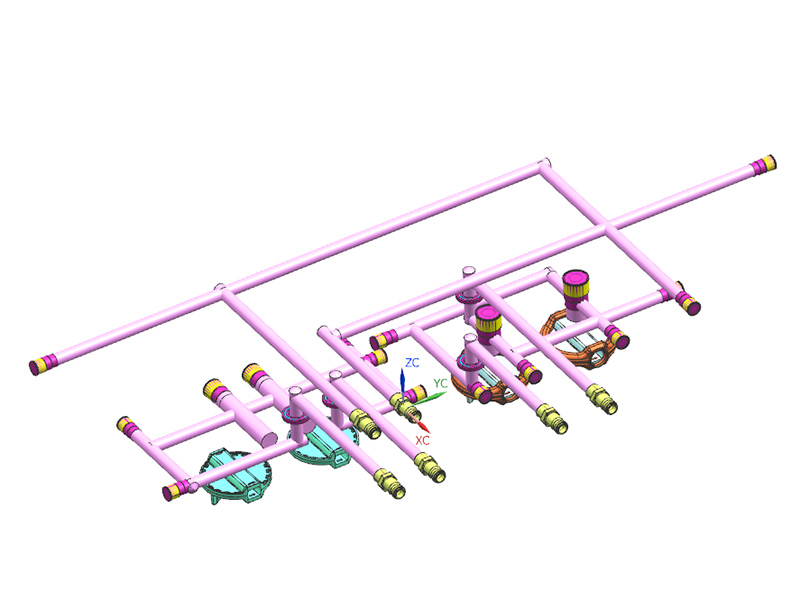

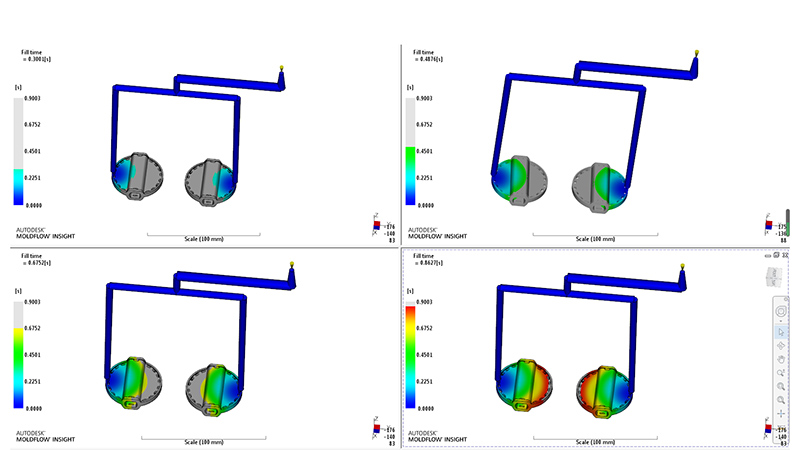

Runners


Mold Design

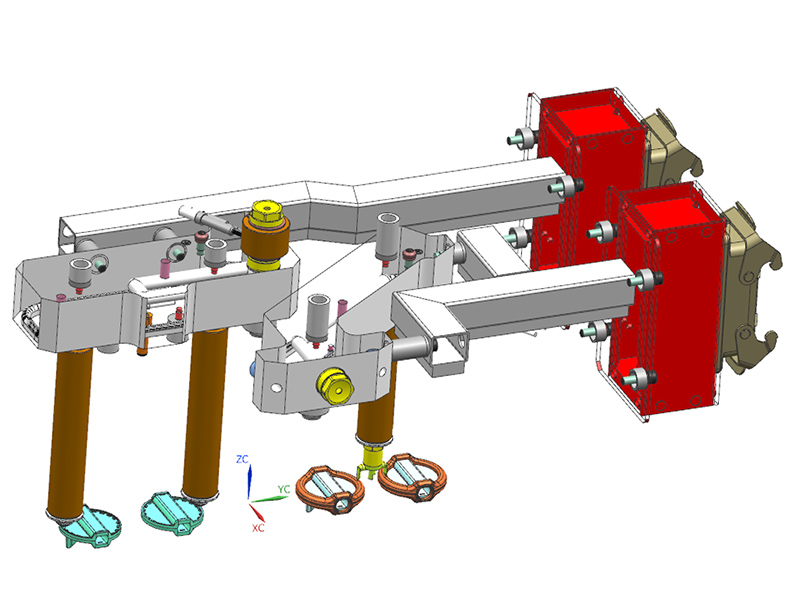

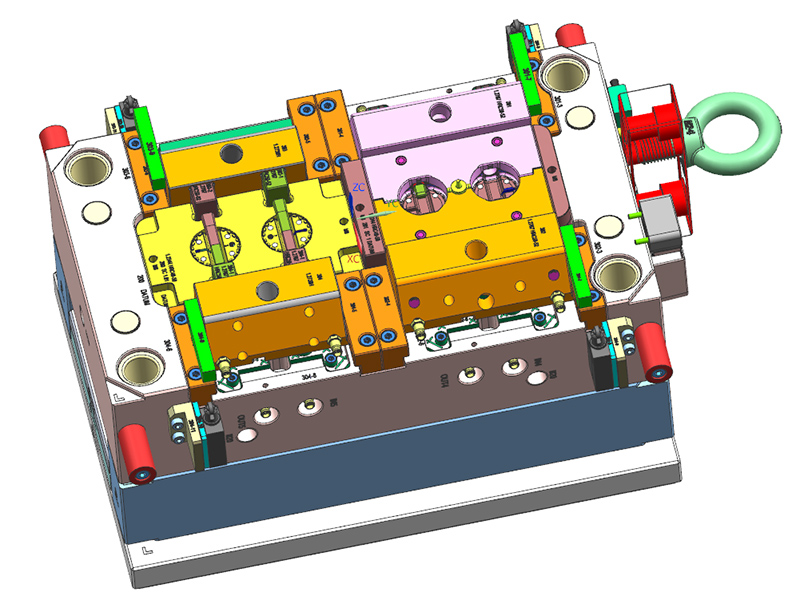

Core side



Mold Design

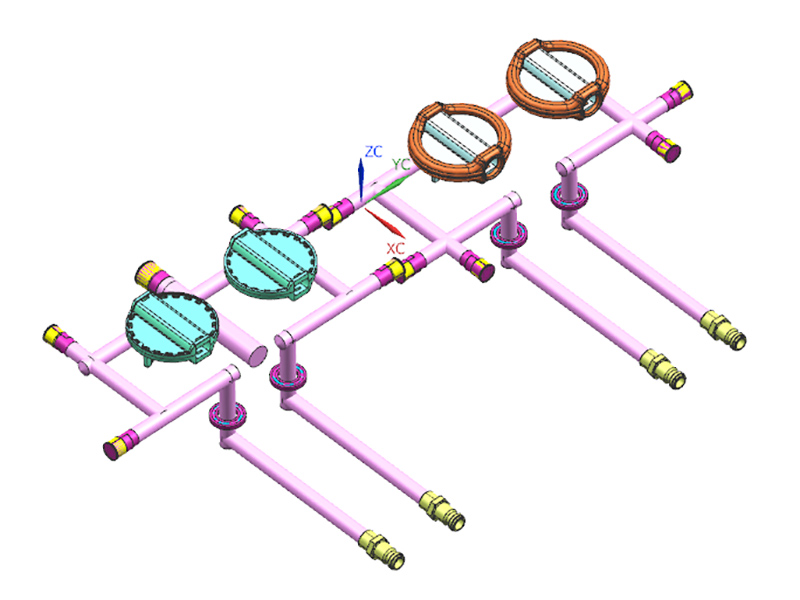

Cavity Cooling


Mold Design

Core Cooling


Mold Design

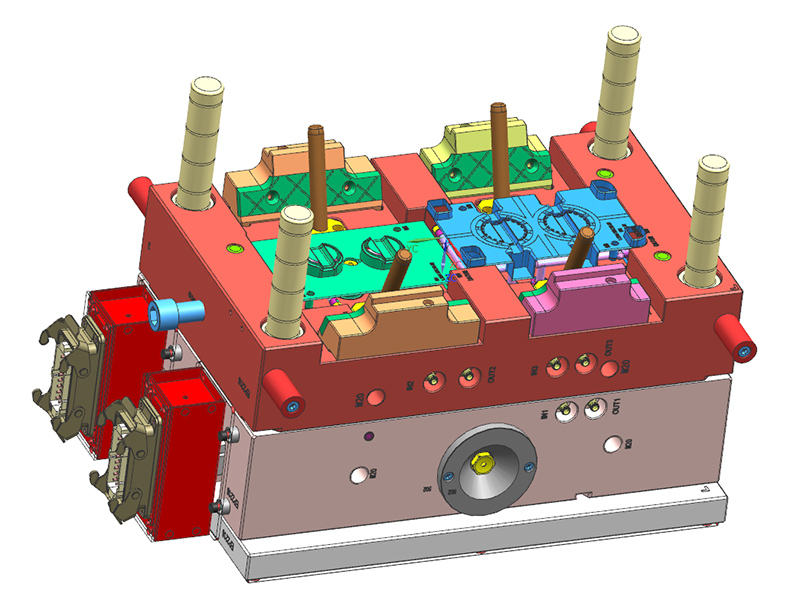

Cavity Side



Mold Design

Core Side

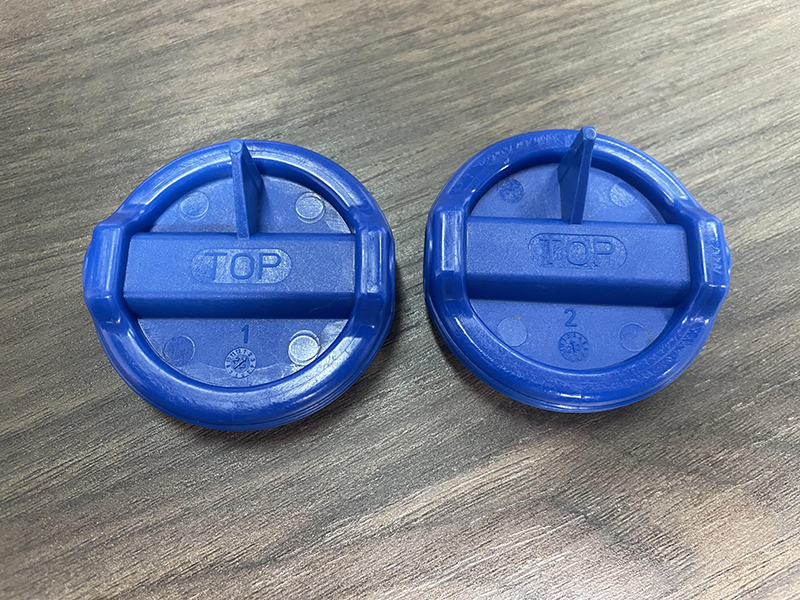

Part Picture

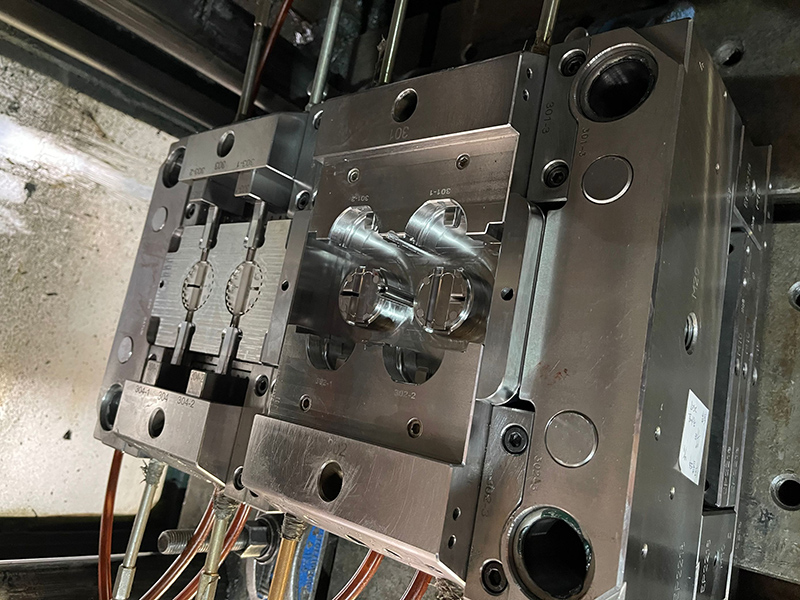

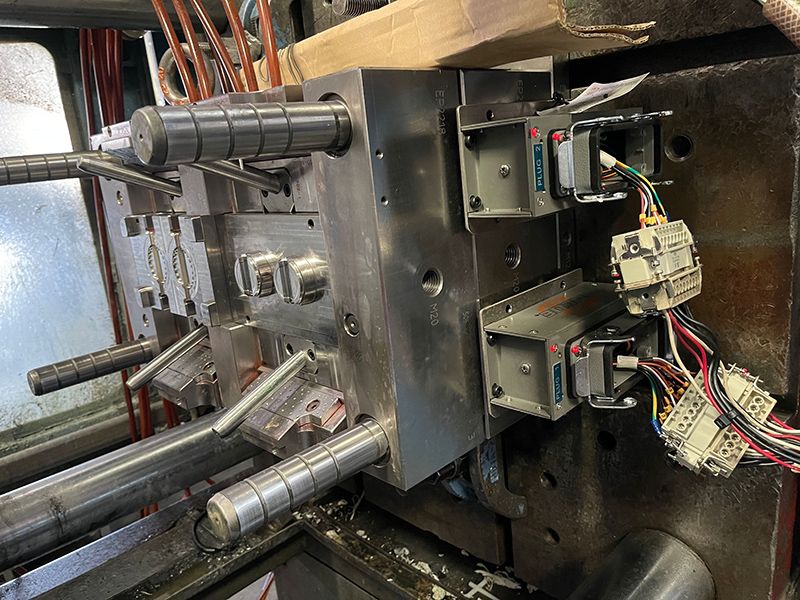

Mold Picture



Mold Picture
